500 Meters Long Range PoE+ Extension Kit


Product#: 6320-98

Extend your PoE range up to 500 meters for IP camera systems

    Usually Ships in 2 Days.
tickQualifies for Free Shipping.
tick100% Satisfaction Guaranteed.

SKU: 6320-98 Category:

500 Meters Long Range PoE+ Extension Kit offers a simple and cost-effective solution to extend PoE up to 500M between two switches without adding any PoE extenders.

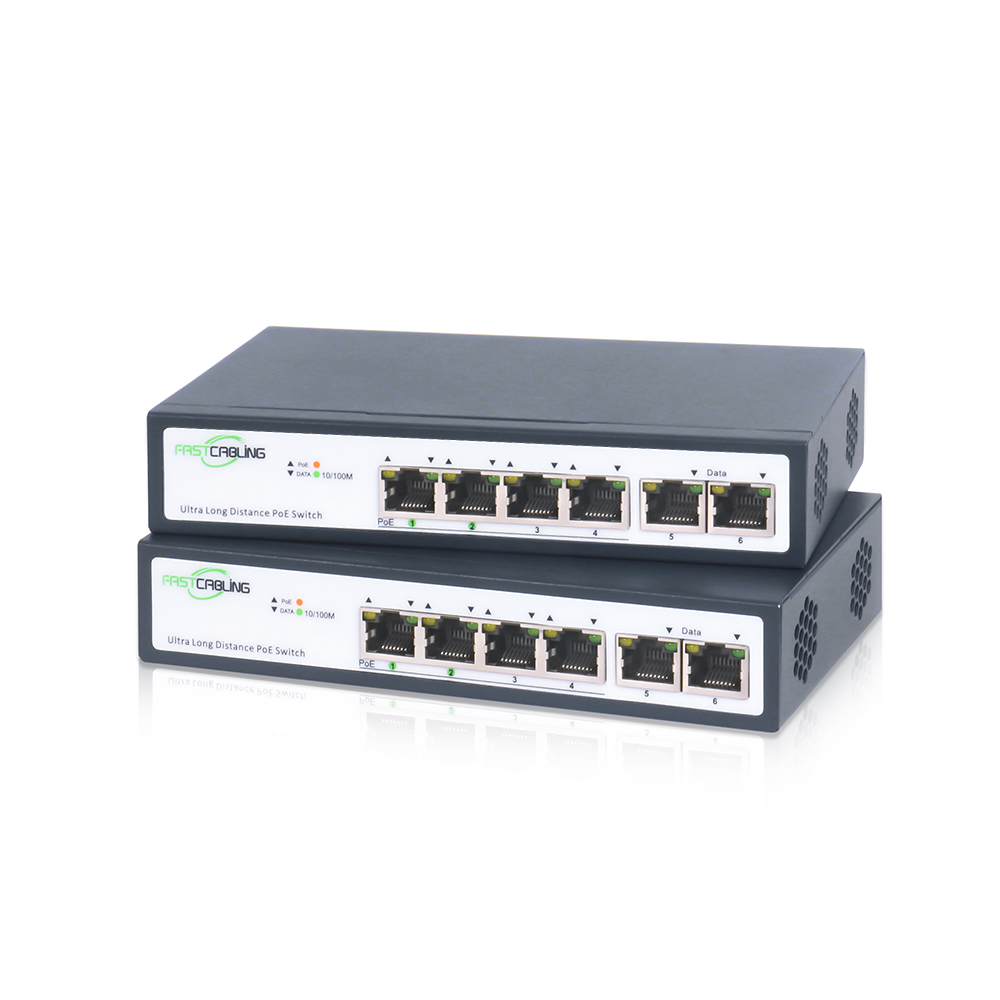

A continuous run of Cat5e cable spanning distances up to 1600 ft. This kit contains 2×4-port long-range PoE+ switches, delivering high-speed connectivity and max. power outputs of 30W.


Ultra Long Range PoE+

Support data transmission of up to 500 meters between 2×4-port long-range PoE+ switches, offering a convenient installation for point-to-point network applications.

Safety in Combustible Environments

Only data transfer between two workstations, ensuring safe operation in hazardous locations that contain combustible dust or flammable gases, such as flour mills, oil rigs, and gas-fired power plants.

No Further Hardware Required

Eliminate the need for installing additional Ethernet cables and PoE extenders in long-range applications, reducing potential failure points and maintenance costs.


Each switch is equipped with four 10/100Mbps RJ45 PoE ports and two 10/100Mbps RJ45 Ethernet uplink ports for high-speed data networking. Only ports #1 and #2 support 500M.


Compliant with IEEE 802.3af/at, ensure a maximum power output of up to 30W per port with a 60W power budget to efficiently power various PoE devices, such as IP cameras and WAPs.

High-Speed Connectivity

Ensure high-speed connectivity between two 4-port long-range PoE+ switches at a data rate of 100Mbps, ideal for mission-critical applications like IP camera systems.

Quick Installation

Seamlessly integrated into existing networks without complex configuration, easy to install, wall mountable metal housing. No additional AC outlet is required for connected PDs.

LED Indicators

Display the status of connected devices intuitively, improving quick diagnostics.

Do you have any questions or concerns?

The Best Way to Extend Your Network Over 500 Meters

PoE is a useful technology in powering remote devices, but the maximum distance for PoE is only limited to 100 meters. So if your IP camera must be set up over 100 meters, you’ll need at least one PoE extender to amplify the signal before it loses its integrity.Read more
